For those of you who love your Hasselblads, but miss the movements of your large format camera. For those of you who love your large format cameras, but wish to experience the precision of this smaller camera.
The Flexbody is a tilting and rising body built by Hasselblad that uses V system lenses and film backs. The camera employs a ground glass back for focusing and composition. It can rise/fall 15mm in either direction and tilt up to 30 degrees forward or backward. By rotating the entire camera 90 degrees, tilt becomes swing and rise becomes shift.
An excellent way to open up your Hasselblad kit to new experiences, or to enjoy movements without the size and weight of your large format system.
za/js
Hasselblad Flexbody with Rollei Ortho 25
A Hasselblad Flexbody out in the field exposing through a roll of Rollei Ortho 25 film.
Shooting an ortho film can be quite fun. The stuff is generally super low ISO (ISO 25 in this case), super fine grain, and has a spectral sensitivity limited to the blue/green end of the spectrum. This can give ortho films a distinct look in terms of their tonality.
For this image we combined the tilting capabilities of the Flexbody, with those characteristics of an ortho film, along with the judicious use of a couple heavy ND filters to really draw out the shutter speed.
za/sd
Hasselblad Flexbody with Fall Color
The Hasselblad Flexbody is one of the more innovative cameras that Hasselblad ever made. Think of it like a mini large format camera, capable of using the Hasselblad V-system lenses and film backs. While the Flexbody has all four movements typically found on a large format camera (that would be tilt, rise, swing, and shift), the camera is immediately capable of tilt and rise. Since it is a square 6x6cm format, you can easily rotate the whole camera 90 degrees to turn those two movements into their swing and shift counterparts. You just can never combine tilt and swing, or swing and rise, for example.
The Flexbody almost requires being secured to a tripod at all times. While the standard Hasselblad 500C will never make claims as the fastest camera ever, the Flexbody is an even slower and more methodical process, again very much akin to shooting large format field cameras. The photographer sets the Flexbody up on a tripod and mounts the camera's ground glass back. At this point, focusing and movements can be dialed in. Critically focusing requires the use of a loupe - or very keen eyesight - and potentially a specialized fresnel screen, if tilt or swing are applied. Next, the ground glass back is removed and the film back is seated. After that, and very importantly, a cable release is required to partially trip the shutter and close it, prior to the dark slide being removed from the film back (otherwise you end up with a blown out, fogged frame of film). At this point, the cable release is pressed again to trigger the shutter's firing. One crank on the side of the camera advances the film back to the next frame, the dark slide must then be reinserted and a second knob on top of the camera is used to reset and reopen the shutter in the lens.
It is quite a process, huh?! The camera has several steps that need to be followed or disaster in the form of a lost frame of film can happen. But slowing down, having to work for each exposure, double checking yourself as you go, and thinking about what you are doing are hardly the worst things a photographer has to do. Plus, the results can be so much fun.
za/sd
Hasselblad Flexbody with Sample Images
The Hasselblad Flexbody could be thought of as a small, large format camera in a medium format body. In that sense, it offers both tilt and rise movements. Tilting allows the plane of focus to be thrown out of parallel with the film plane, or vice versa in the Flexbody's case. You can have your focus slicing across a scene in a way not normally capable. Take a landscape image for example. You can focus on the clouds in the sky, but have the Earth below out of focus. Or, you can focus on distant objects on the ground but have the rest of the scene above them out of focus. This is but one use of tilt, of course. Another common use of this movement is enhanced depth of field. In this case, it is about getting much more in focus than it is about reducing focus to a single slice.
Flexbody cameras are pretty nifty. They are a bit slow and tedious to use. Unlike other Hasselblads, they are poorly suited for handheld use. They do open up whole new worlds of creative possibilities though. We'll share a few sample images made by Zeb while playing around with this unique camera.
za/sd
Hasselblad Flexbody and Ilford Delta 100
Delta 100 is not a film we use terribly often. When gathering sample images of this film stock, our staff had none. This necessitated some "alone time" with the film out in the field. The results were pleasantly nice. We had general expectations of what the film would deliver; for example, we knew Delta 100 was a fine, tabular-grain film. When we saw our resulting scans, we were impressed by just how smooth its grain was. While Fuji Acros II is probably finer grained (Ilford doesn't publish RMS or Print Grain indexes for the grain of its films), Delta 100 still comes across as very fine. We feel like it still beats out TMax. In short, we enjoyed getting to know this film. The exercise was a valuable one as we had been avoiding this film for apparently no good reason other than ingrained preferences to the emulsions we already knew. Now we know a new one.
za/sd
Hasselblad Flexbody at Sahalie Falls
"Objects on the focusing screen may be oriented differently than they appear."
One of our staff got out for a weekend drive through central Oregon with his Hasselblad Flexbody. We don't know about where you live, but autumn has really set in here in the Pacific Northwest. The leaves are changing colors, the rain has moved in, and the light has gotten so much softer. In short, it is the time of year we love getting out and making photos.
There is a joke among photographers in the Pacific Northwest, that some folks pay lots of money to artificially set up the kind of light that we get for free six months out of the year. It is true that the soft fall light, filtered through overcast skies, can be pretty wonderful to work with. Learning to recognize the lovely qualities of that light can go a long way to helping you love this time of year and not miss the warm summer months quite so much.
Let's have a brainstorming session, shall we? What are your favorite aspects of photographing during this autumn? Is it the light? The fall colors? The justification for carrying a hot thermos of tea? The quieter trails? Which cameras go out on these trips with you?
za/sd

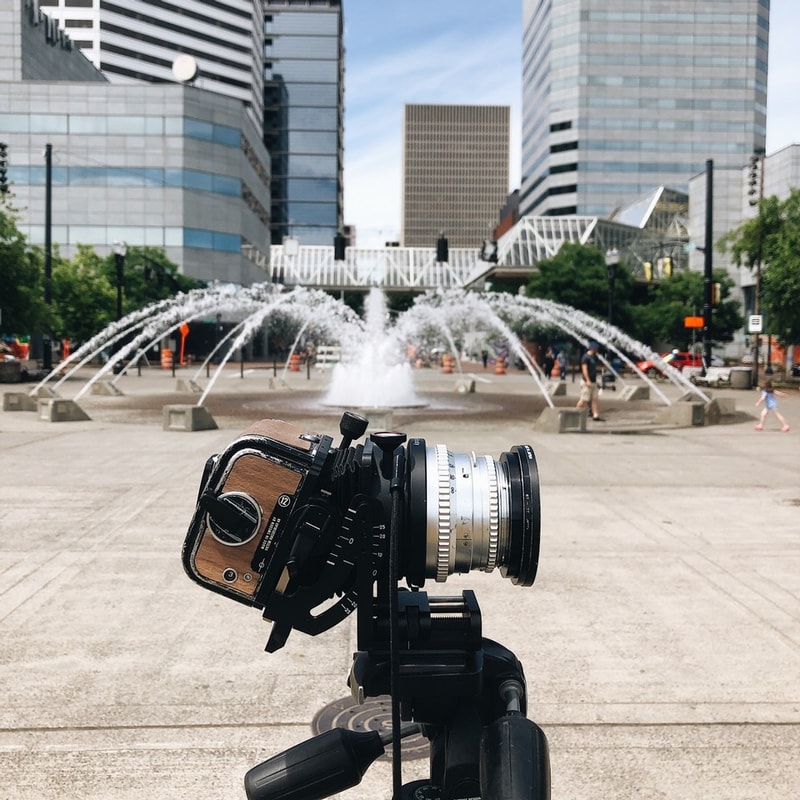

Hasselblad Flexbody

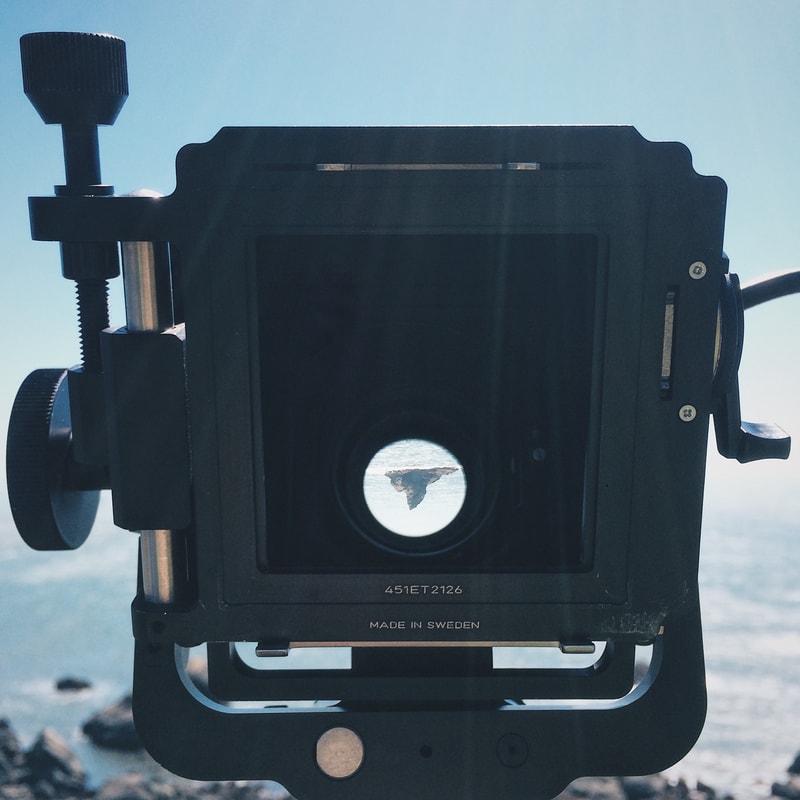

We find the way that cameras see the world endlessly fascinating. Many photographers use cameras to record what they see. Some photographers use cameras to record the world in ways they cannot see. Whichever purpose you are using a camera to fulfill, we're right there with you. A fluent photographer is able to go out into the world and speak about it in a whole other language - that of light and time and all the other aspects of visual imagery. We are fortunate for this visual voice we have. ⠀ ⠀ On a vaguely related side note, we'll use this image to remind you that the lenses of our cameras project their images upside down and backwards. We realize that most of you know this already, but we help many photographers who do not quite grasp this concept just yet. It is pertinent when trying to decipher where a pesky light leak originates from, or figuring out where that black hair in every negative is stuck in the frame mask of the camera. For example, if the light leak is spreading in from the top of your image, that means it is coming from the bottom of your camera, hence where you should target your gaffer taping efforts. Anyway, we weren't necessarily thinking about that when we made this image but it is a great representation of that feature of physics.⠀
za/sd
Hasselblad Flexbody: A sample gallery
The unique capabilities of the Hasselblad Flexbody remain fairly abstract without a visual to support them. Enjoy these sample images made by staff member, Zeb Andrews.
It's The Great Hasselblad Flexbody Charlie Brown
We love the summer-to-fall transition; all the bright colors, the dramatic shift in weather and light!
Zeb brought his Hasselblad Flexbody out to the very seasonally appropriate pumpkin patch to help him find a good pumpkin for his next pinhole project...
