The Kiev 60 is a medium format SLR camera similar to the Pentacon Six. Like the Pentacon Six, the Kiev 60 uses the Pentacon lens mount and makes twelve 6x6cm images on 120 film. The camera features interchangeable lenses and finders, with an available TTL prism finder to allow through-the-lens metering with the camera.
Built by Arsenal in Kyiv, Ukraine, former USSR from 1984-1989, the Kiev 60 has a mixed reputation. On the one hand, it is a fun camera to use, handling just like the oversize 35mm SLR it resembles. Controls are intuitive, with a front-mounted shutter release making it easier to hold. The finder is large and bright, and many cameras feature split-image focusing screens. The Kiev 60's Pentacon lens mount gives it access to a trove of excellent and affordable Zeiss lenses, like the 180mm "Olympic" Sonnar.
On the other hand, the Kiev 60 is known for a variety of mechanical weak points. The film advance is finicky, not only in its heavy, long wind but also in its tendency to overlap frames near the end of the roll. Shutter issues are common, and the material used to flock the mirror box can create flare. Most Kiev 60 copies we see need substantial repair to return to good working order, and this example was no exception. The Ukrainian company ARAX sells overhauled and upgraded Kiev 60 cameras that address these issues, giving access the benefits of this system with better mechanical reliability.
Kiev 60 - Focusing Screen Composition
A composition as seen through the lens of a Kiev 60. The grid lines on this focusing screen are useful in framing architectural subjects.
Kiev 60 - Waist Level Finder Composition
We love the bright focusing screen found on the Kiev 60, especially when paired with the waist level viewfinder.
Kiev 60 - Focusing Screen
The Kiev 60's focusing screen features a diagonal split image rangefinder, surrounded by a microprism ring. These focusing aids are especially useful when using a fast-aperture lens like this 80m f2.8.
Kiev 60 - Waist Level Finder View
The combination of a waist-level viewfinder with the more traditional "35mm" control layout of the Kiev 60 is an interesting combination. Without a pentaprism, the image shown on the focusing screen is laterally reversed.
Kiev 60 - Waist Level Finder
The Kiev 60 can accept waist level or pentaprism viewfinders. The waist level finder is less common, and while it does not provide the meter functionality of the prism, it does reduce the size and weight of the camera considerably.

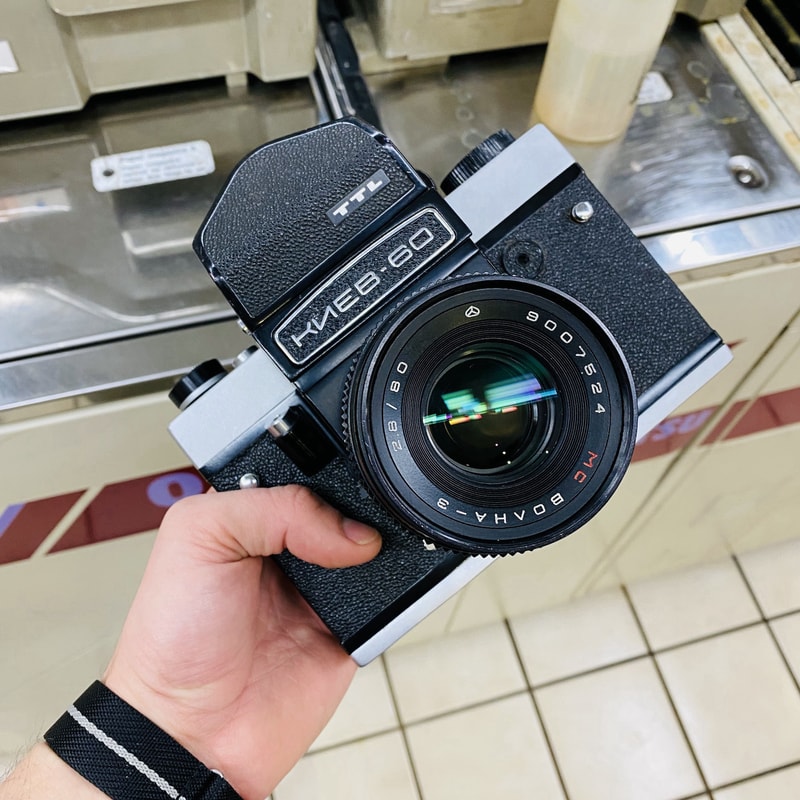

Kiev 60 - TTL Prism
The Kiev 60 is often found equipped with a TTL prism, as shown here. The prism is powered by (3x) LR44 batteries and has a large, comfortable eyecup surrounding the eyepiece. The meter has an in-finder LED display but is uncoupled to the camera, meaning that settings must be manually transferred to the aperture and shutter controls.
